Fonestar Background Music Sound System

Description

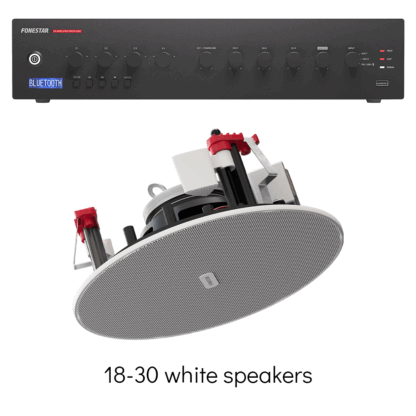

Fonestar 4-zone Bluetooth background music sound system with up to 30 white speakers

System includes:

• 1 x PROX-240Z 240W 100V line 4-zone mixer amplifier with Bluetooth and MP3 player
• Up to 30 x SKY-5T 12W 5″ 100V line low profile ceiling speakers
• 1 x 3.5mm jack auxiliary lead
• 2 x 100m reels of 6A speaker cable

Amplifier

Fonestar PROX-240Z 240W 100V line 4-zone mixer amplifier with Bluetooth and MP3 player

Public Address Amplifier with Bluetooth®/USB/FM Player and Speaker Zone Selector.

• The best tool for sound reinforcement in any space
• Reliable for long working hours
• Distributed audio for public address installations with 100V speakers, also featuring a low-impedance output
• Versatile player for background music. Bluetooth, FM, and USB memory player. With an automatic playback function upon power-up
• Includes 4 zone outputs with volume control for different music levels per zone
• Easy-to-use interface with a modern and discreet design
• A solution that adapts to any budget
• Secure and durable connections with low maintenance
• Can be used as a tabletop unit or installed in a rack

Perfect for public address and background music systems with 100V line or low-impedance speakers. Commercial spaces, educational centers, monuments, exhibitions, bars, restaurants, etc.

• Features:
  • Public address amplifier
  • Bluetooth/USB/FM player
  • Microphone input with mix, gain and priority level control
  • Input priorities by signal level
  • Tone controls
  • 100 V and 4 Ω outputs
  • 4 outputs zones with volume control and Off
• Power: 240 W RMS
• Frequency response: 40-20,000 Hz (-10 dB)
• Distortion: THD+N: < 1% @ 1 kHz
• S/N ratio: >77 dB
• Protections: Overcurrent, DC and short-circuit at the output
• Inputs:
  • CH 1 balanced mic/line with 48V Phantom, Combo (XLR + 6.3 mm) and euroblock
  • CH 2, 3 and 4 balanced mic/line with 48V Phantom. Euroblock connector
  • Mic signal level: 6 mV RMS (-44 dBV) / 600 Ω
  • Line signal level: 250 mV RMS (-12 dBV) / 100k Ω
  • 2 x AUX. 2 x RCA and euroblock connector. Signal level 300 mV RMS (-10 dBV) / 47,000 Ω
  • 1 x emergency. Euroblock connector. Speaker line signal level 100 V
  • 1 x Mute (Emergency Priority) by contact closure. Euroblock connector
• Outputs:
  • 1 x line. 2 x RCA connector. Signal level 1.25 mV RMS (+2 dBV)
  • 100 V or 4 Ω speaker output, or 4 x 100 V speaker zones with 5-position volume selector and OFF (max. 120 W RMS per zone). Connector screw terminals
• Impedance: 4 Ω and 100 V (42Ω) line
• Functions:
  • Priority of entries (in order of attenuation):
    • Emergency entry 100
    • Mute by closing contacts
    • Channel 1 with selectable signal level shared CH 1-2-3-4 (VOX)
    • Channels 2 | 3 | 4 with selectable signal level shared CH 1-2-3-4 (VOX)
    • Auxiliary Inputs | Player
  • Light indicators for ignition, protection, signal peak and output signal
  • Cooling by forced ventilation controlled by temperature
• Player: Bluetooth/USB/FM player for ambient music playback
  • MP3 and WAV files supported
  • Maximum USB memory capacity 64 GB
  • Autoplay, starts playback automatically when switched on
  • Playback mode memory (random, repeat)
• CONTROLS:
  • Microphone volume
  • Mic/line/phantom switch
  • Master volume
  • Auxiliary input selector or player
  • Zone volume
  • Tone: bass and treble (±10 dB 100 Hz and 10k Hz).
  • Microphone gain
  • Priority activation signal level (VOX)
• Temperature: Operation: 0º ~ 40ºC
• Maximum humidity: 95%
• Power supply: 230/115 V AC, 50-60 Hz, 480 W, Fuse AC 230 V 4 A / 115 V 8 A
• Dimensions: 433 x 89 x 360 mm depth. 2 U 19” rack
• Weight: 11.5 kg
• Accessories:
  • FM antenna
  • Bluetooth antenna
  • Power cable
  • Rack mounts

Speakers

Fonestar SKY-5T 12W 5″ 100V line low profile ceiling speaker

Design by Fonestar products are the result of in-depth research and active listening to our customers, turning their needs into competitive solutions. Stylish design and acoustic versatility in a 5‘’ ceiling speaker. The SKY-5T is a 100 V line transformer ceiling loudspeaker designed to combine aesthetics and functionality in professional sound system engineering and installation projects. Its frameless, low-profile grille in rust-resistant aluminium provides a discreet, modern finish. In addition, it is detachable, twist-lockable and customisable, allowing the logo to be removed and painted to suit the environment.

This loudspeaker is designed to meet the needs of demanding installers and technical projects thanks to advanced features

• Efficient installation: quick-connect terminals for 0.4 to 4 mm² cables, anti-fall system and safety hook for easy mounting in ceilings up to 30 mm thick
• Guaranteed durability: high-strength materials, such as UV-protected ABS and painted aluminium grille, meet dust, water and neutral salt spray resistance standards (IP-44)
• Excellent acoustic performance: wide response range (55-20,000 Hz), optimised coverage angles and sound pressure of up to 98 dB, ideal for indoor and outdoor PA projects

The SKY-5T stands out for its combination of performance, reliability and design

• High-quality sound thanks to its 5‘’ dual-cone polypropylene diaphragm and adjustable impedance settings (833 Ω to 3.333 Ω)
• Application flexibility with support for challenging environments (-20 °C to 70 °C, 95 % max. humidity)
• Easy maintenance and customisation, suitable for multiple environments, from offices to commercial spaces
• The SKY-5T is the perfect choice for those seeking quality, style, and functionality in in-ceiling loudspeaker solutions

Specifications

• Features:
  • Ceiling loudspeaker with 100 V line transformer
  • Low profile frameless grille, constructed from rust resistant aluminium. Detachable, turn-lockable grille. The logo can be removed and painted
  • Fast connection terminals and high conductivity
  • Anti-fall system for installation assistance
  • Hook for safety cable
  • Stable, worm-gear ceiling brackets
  • Protection against dust and water
• Power:
  • 12 W RMS
  • 16 W MAX.
• Speaker: 5” polypropylene double cone diaphragm
• Frequency response:
  • 55-20,000 Hz @ -10 dB
  • 70-20,000 Hz @ -3 dB
• Impedance:
  • 12 W RMS@100 V (833 Ω)
  • 6 W RMS@100 V/70 V (1.666 Ω/816 Ω)
  • 3 W RMS@100 V/70 V (3.333 Ω/1,633 Ω)
  • 1.5 W RMS@70 V (3.266 Ω)
• Sensitivity: 85 dB @ 1 W/1 m
• Sound pressure:
  • 97 dB @ max. W/1m Continuous
  • 98 dB @ max. W/1m Peak
• Dispersion angle: 90º@1kHz (- 6 dB)
• Protections:
  • IP44 in compliance with IEC 60529
  • EN ISO 9227:2006 Neutral Salt Spray Test
• Material:
  • ABS (UV resistant)
  • Liquid paint aluminium grille
• Connectors:
  • Highly conductive quick-connect terminals
  • For 0.4 ~ 4 mm² cross section cable
• Operation temperature: -20ºC ~ 70°C (48 h)
• Storage temperature: 10ºC ~ 40°C
• Maximum humidity: 95%
• Colour: White (RAL 9003)
• Dimensions:
  • Total loudspeaker: 214 mm Ø x 85 mm height
  • Grille section: 5 mm
  • Recessed height: 80 mm
  • Installation hole: 180 mm Ø
  • Maximum ceiling thickness: 30 mm
• Weight: 0.8 kg
• Accessories : Installation template

Speaker cable

Mercury oval 100m 6A 100v line speaker cable

Available in:

• Black 100m (804.314)
• White 100m (804.311)

Oval profile mains electric cable. Flexible PVC sheath for use in light electrical applications. BSI approved to BS6500, VDE approved.

• CSA: 0.75mm²
• Strands: 2 x 24/0.2mmØ
• Cable dims: 3.6 x 5.9mm
• Current: 6A max.
• Length: 100m

Product styles may vary.

Each speaker must be set to a maximum of 6W if connecting more than 18 speakers. Exceeding this will overload the amplifier. The system’s total capacity is 240W, with a maximum of 120W per zone.
