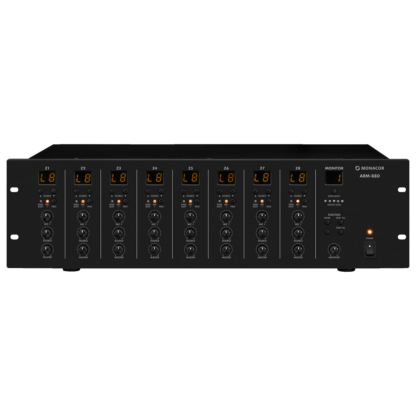

Monacor ARM-880 Audio Matrix Router

The Monacor ARM-880 system is a highly flexible PA solution for multi-room applications. It is ideally suited for applications in hotels, in restaurants and bars, in conference rooms, schools, sports facilities and fitness centres. Eight different audio sources, e.g. CD players, SAT receivers, radio programmes can be distributed to 8 output zones, assignment as required.
The audio matrix router ARM-880 is the centrepiece of the system. For operation, one amplifier is required for each output used. This may be an individual power amplifier or an active speaker system. Matching wall modules ARM-880WP1 and ARM-880WP2 for remote control of ARM-880 or with additional local inputs for the respective zone are available at option.
With a master/slave connection, it is possible to extend the system to up to 32 output zones. Connections for various alarm signals and a local microphone are available. Announcements can be made via 2 optional zone paging microphones ARM-880RC with zone selection.

• 8 audio inputs and 8 audio outputs
• Inputs 1-4, line, with gain control
• Inputs 5-8, switchable line/mic
• 2 zone paging microphones ARM-880RC and 1 local microphone (for all zones) can be connected
• 1 additional audio input for each zone, non-routable, with gain control
• 8 wall modules ARM-880WP… can be connected as remote control
• Extendable to up to 32 zones
• Microphone, music and master volume controls for each zone
• 2-way tone control for each zone
• Priority management
• Emergency announcement with priority for each zone, even when extended
• 3 different alarm signals
• 7-segment LED display for each zone
• Clipping indicator
• Monitoring function with built-in speaker
• 482 mm (19″) rack installation
• Mains operation or 24 V emergency power operation

Specifications

• Frequency range: 20-20,000 Hz (line), 80-18,000 Hz (mic)
  • Mic 1: 300 mV/660 Ω
  • Zone paging microphone: 500 mV/10 kΩ
  • Line 1-4: 195 mV-2 V/47 kΩ
  • Line 5-8: 350 mV (line), 5 mV (mic)
  • Zone 1-8: 300 mV-1.1 V/10 kΩ
  • Emergency announcement: 775 mV/10 kΩ
• Outputs
  • Zone: 1-8 1.5 V/600 Ω
• Equalizer bass: ± 10 dB/100 Hz
• Equalizer treble: ± 10 dB/10 kHz
• S/N ratio > 65 dB (mic), > 85 dB (line)
• THD: < 0.07%
• Admissible ambient temperature: 0-40 °C
• Power supply: ˜ 230 V/50 Hz/30 VA
• Dimensions: 484 x 138 x 325 mm, 3 RU
• Weight: 10.73 kg

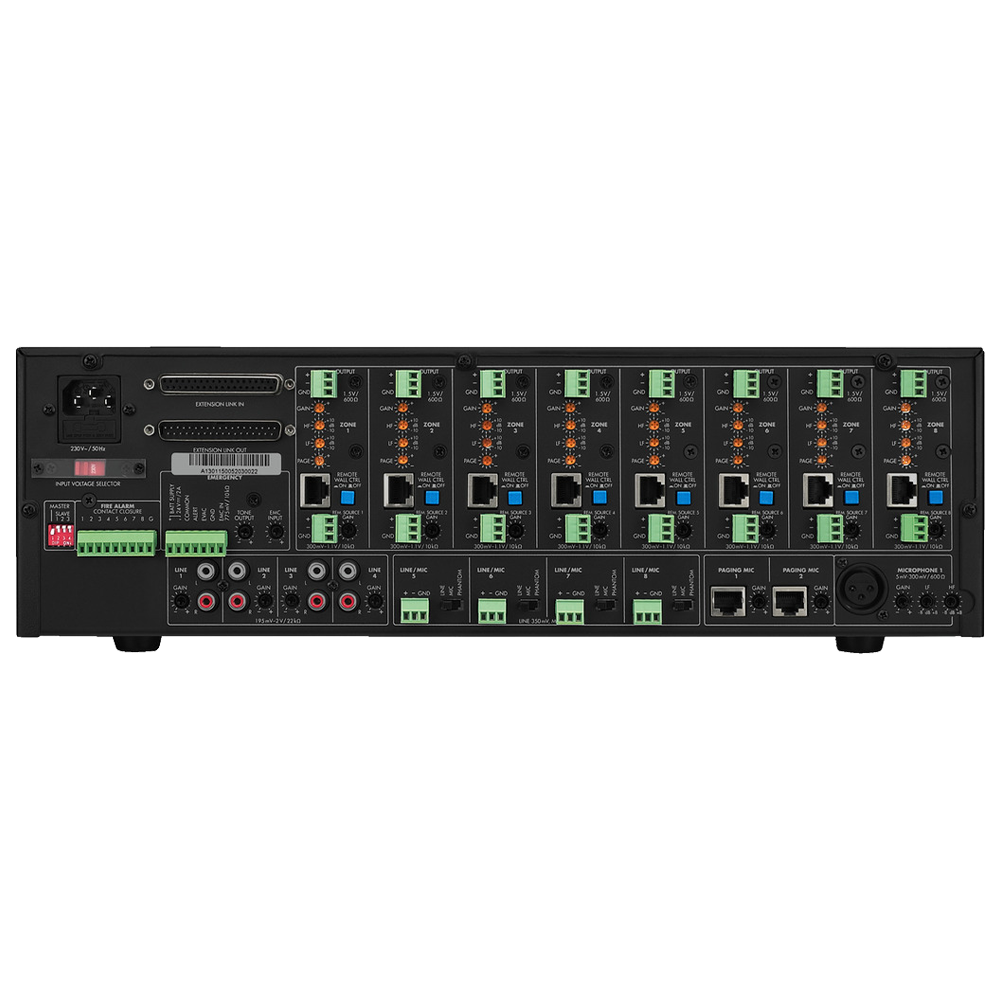

• Connections
  • Mic 1: 1 x XLR
  • Zone paging microphone: 2 x RJ45
  • Line 1-4: 4 x RCA L/R
  • Line/Mic 5-8: 4 x plug-in screw terminal
  • Zone 1-8: 8 x plug-in screw terminal (IN), 8 x plug-in screw terminal (OUT)
  • Wall modules: 8 x RJ45
  • Fire alarm: 9-pole plug-in screw terminal
  • Emergency announcement: 1 x plug-in screw terminal
  • 24 V DC: 1 x plug-in screw terminal
  • Alarm: 1 x plug-in screw terminal
  • EVAC: 1 x plug-in screw terminal
  • Extension: 2 x D-sub DC37 (IN/OUT)
