Conference
jtsProduct recommended by Sound Services

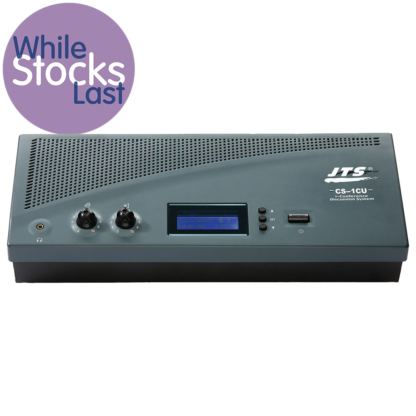

JTS CS-1CU conference system control unit

£229.00 £274.80 incl. VAT

Conference system control unit

PDF

Description

JTS CS-1CU (Monacor CS-50CU) conference control unit

Professional conference sound system for council chambers, boardrooms and meeting venues control unit requires 1 chair person microphone and up to 49 delegate units – delegate microphones can be converted to passive or press / reporter units by removing the microphone stem

System can include:

1 x CS-1CU control unit
1 x CS-1CH chairperson’s microphone
Up to 49 x CS-1DU delegates’ microphones

The microphone station for the chairperson CS-1CH and the microphone station for conference delegates CS-1DU together form a conference discussion system with extensive configuration facilities for maximum flexibility

The control centre of the conference discussion system. The CS-1CU allows to set up a system with up to 50 microphone stations and at the same time supplies their operating voltage.

  • Adjustable discussion modes (e.g. number of simultaneous speakers, limited talking time, sole activation for the chairperson)
  • Built-in speaker and connection for optional headphones
  • Keypad lock
  • LCD for indicating date and time
  • Stopwatch
  • Test function for connected microphone stations
  • Connection facilities for optional units, e.g. external microphone, telephone coupler, signal processing units (e.g. equalizer), recorders, amplifiers, audio line sources
  • Power supply: ˜ 100-240 V/50-60 Hz/90 VA
  • Dimensions: 360 x 90 x 150 mm
  • Weight: 1.7 kg
  • Connections: 2 x RCA (input/output for telephone coupler), 2 x RCA (input/output, e.g. for equalizer), 2 x RCA L/R (input/output for recorder), 2 x RCA (input/output for line signals), 1 x XLR (microphone input), 2 x 7-pole DIN jack (connection for microphone stations)

Brand

JTS

jts

Recommended Products

Our customers come back time and time again for these recommended products - some are great value for money, others have proven track records for build quality and reliability and some are just our own personal favourites
Product recommended by Sound Services

Additional information

Weight1.7 kg
Dimensions15 × 36 × 9 cm
