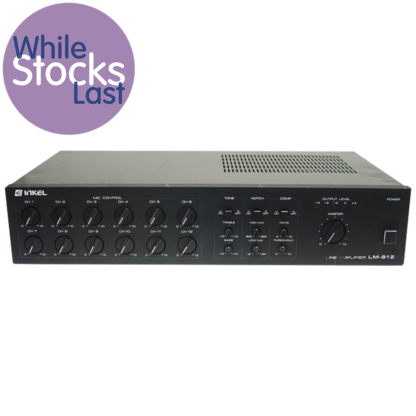

Inkel LM-912 Microphone Mixer

Description

Inkel LM-912 microphone pre-amplifier and 12-channel microphone mixer (12:1) with integral limiter and notch filter

We also have a VGC ex-display unit available – Inkel LM-912 microphone pre-amplifier and 12-channel microphone mixer (12:1) with integral limiter and notch filter – ex-display. Used, ex-display and clearance bargains include a 90 day return to base warranty.

• Input sensitivity
  – Mic 1 to 12: – 70dBm / 600 ohm balanced
  – Link Input: 0dBm / 10K ohm unbalanced
• Output
  – Line Out: + 4dBm / 600 ohm balanced
  – Link Out: 0dBm / 600 ohm unbalanced
• Frequency Response: 80Hz to 16KHz +/- 3dB
• THD: < 0.5%
• S/N Ratio: >47dB
• Tone Control
  – Bass: 80Hz +/- 12dB
  – Treble: 12KHz +/- 12dB
• Notch Filter
  – High: 800Hz to 15KHz
  – Low: 40Hz to 1.5KHz
  – Depth: – 15dB
• Compressor
  – Threshold: + 15db to – 15dB
  – Ratio: 1:1 to Infinity:1
• Dimensions: 440 x 88  x 280 mm
• Weight: 4.5 kg
• Power: 120v AC / 230v AC – 50 / 60Hz – 8w

All used and ex-display items are tried and tested before leaving our warehouse, but will have usage marks and some signs of wear – used, ex-display and clearance items include a 90 day return-to-base warranty.

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
