DSP

Citronic CSL-10 Stereo Mixing Desk

SKU: 170.853

£171.04 + VAT    £205.25 incl. VAT

8 channel mixer with DSP effects

In stock

DSP
stereo
Equaliser

PDF

Description

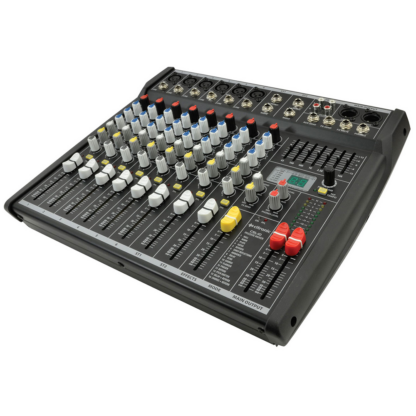

Citronic CSL-10 8 channel stereo mixing desk with DSP effects

Compact mixing consoles with balanced mic/line inputs and 2 stereo inputs, each with 3-band EQ and aux send. A 16 program DSP section with tap tempo can provide vocal effects and a 7-band graphic EQ facilitates global tone control. Designed primarily for venues and stage applications, these models offer a compact and comprehensive solution for mobile PA, bars and special events.

  • 24-bit 16 program DSP effects
  • 48V phantom power for XLR inputs
  • 3-band EQ per channel
  • 7-band global graphic EQ
  • IEC mains powered
  • Balanced main outputs
  • Power supply: 230Vac, 50Hz (IEC)
  • Phantom power: +48V (XLR inputs)
  • Power consumption: 25W
  • Fuse: T1AL
  • Input level: +24dBu
  • Output level : line: +26dBu
  • Frequency response: 20Hz-30kHz (0.5dB)
  • CMRR: >74dB (mic 1kHz)
  • THD +N: <0.01% (channel to main out)
  • Crosstalk: >85dB (fader mute), >82dB (channel)
  • Noise rms : 22Hz-22kHz: -122dBu (EIN), -82dBu (mix)
  • EQ: high: 12kHz ±15dB shelving
  • EQ: mid: 2.5kHz ±15dB band pass
  • EQ: low: 80Hz ±15dB shelving
  • Input impedance : mic (balanced): 2k Ohms
  • Input impedance : line (balanced): 10k Ohms
  • Sensitivity : mic: -60 to +14dBu
  • Sensitivity : line: -40 to +14dBu
  • 2-track: 2 x RCA in & out (-2dBu)
  • Effects: 16 program DSP (24-bit sigma-delta, 40kHz)
  • Output impedance: <75 Ohms
  • Headphone output: 6.3mm jack, 30-600 Ohms
  • Inputs : mic/line: 6 x balanced XLRF/TRS jack
  • 2 stereo inputs
  • Dimensions: 360 x 320 x 107mm
  • Weight: 3.5kg

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.

Additional information

Weight3.5 kg
Dimensions32 × 36 × 10.7 cm
Channels

8

Connection

3 Pin XLR (Female), 3 Pin XLR (Male), 6.3mm Jack, RCA Phono

Colour

Black

Condition

New

Brand

Citronic

A brand with history, Citronic is still going strong after 40 years. It has evolved to become a leader in the professional audio market and is now the ideal choice for installers, hire companies and mobile DJs. The comprehensive Citronic range offers reliable and durable products from loudspeakers through to DJ headphones. As a DJ and PA industry pioneer, Citronic developed many of the features that have since become industry standards. The Citronic philosophy has always been to push the barriers of quality and innovation, yet maintain a reputation for “out of the box” reliability with fully featured and affordable products. Over the last 10 years Citronic has taken strides to grow from a humble 30 products to over 200. This versatile range now covers simple home DJ plug & play set-ups and fully featured outboard equipment, right through to high-powered installations. This allows Citronic to service many sectors of the entertainment industry including pubs, nightclubs, hotels and studios, as well as supplying distinctive products DJs. Our professional and commercial sound products, wireless microphones and induction loops are carefully chosen for sale on our website by Sound Services – not everything from every manufacturer is there. Based on feedback, customer reviews and our own observations we list items that are popular, reliable and good value for money. If there are products not shown on our website that you feel we may be able to quote for, please just ask!

User Manuals

What's in the Box?

  • CSL series mixing console
  • IEC power lead(s)
