JTS CS-8 Automatic Mixer

SKU: 81618

£366.87 + VAT    £440.24 incl. VAT

Automatic microphone mixer

In stock

PDF

Description

JTS CS-8 automatic microphone mixer

The automatic microphone mixers of the CS series are the perfect aid for concepts with multiple microphones, e.g. in conference rooms, churches or language laboratories. The main task of the mixer is to open the respective microphone channel when required and to close it again when the speaker has finished the presentation. This intelligent adjustment for the individual microphone channels allows for a silent and precise control which ensures that the audience hears every single word. This greatly improves the overall sound resulting in a clear, transparent reproduction and minimises acoustic feedback and irritating background noise. The CS mixers feature a last-in function in order to maintain a pleasant atmosphere with a soft ambient sound also during the breaks in conversation rather than just cutting off the sound.

  • Automatic microphone mixer
  • 4 channels
  • 3 operating modes: auto mode, priority or 4/1-channel mixer
  • Balanced XLR inputs, switchable mic/line
  • 12 V phantom power
  • Mix output, switchable mic/line
  • Trigger outputs for external devices, e.g. warning devices, cameras or speakers
  • Status LEDs

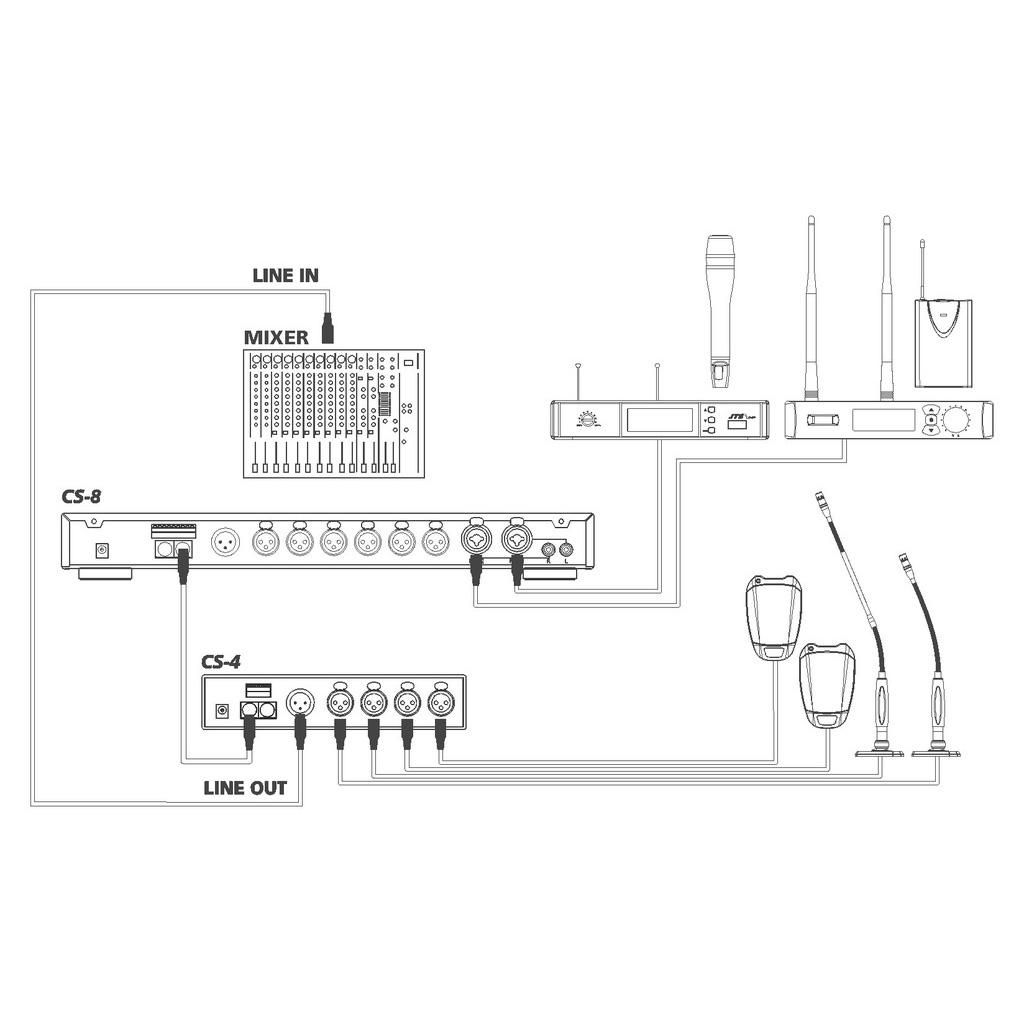

  • Several devices can be combined via link connections (supplied with cable)
  • Desktop metal housing
  • 482 mm (19″) rack installation with supplied mounting brackets
  • Mic input 0.2 mV/4.7 kΩ
  • Line input 60 mV/20 kΩ
  • Aux output 1 V/200 Ω
  • Frequency range 35-20,000 Hz
  • THD < 0.06%
  • S/N ratio > 70 dB
  • Power supply via encl. plug-in power supply
  • Admissible ambient temperature 0-40 °C
  • No. of channels 8
  • No. of inputs 8
  • Phantom power +48 V
  • Width 420 mm
  • Height 44 mm
  • Depth 199 mm
  • Weight 2.3 kg

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.

Additional information

Weight2.3 kg
Dimensions19.9 × 42 × 4.4 cm
Channels

8

Connection

3 Pin XLR (Female), 3 Pin XLR (Male), Screw Terminals

Colour

Black

Condition

New

Brand

JTS

Technology and aesthetics are two necessary components in designing professional microphones. At JTS, both are seamlessly incorporated. For the past 35 years, JTS has been investing large amounts of resources into microphone research and development. The results demonstrate the artistic and scientific achievements of JTS personnel. The effort makes the JTS microphone a marvel in terms of affordability, performance, and reliability. High-performance wireless technology and radio-microphone technology. The JTS product range includes wired stage microphones, sophisticated instrument microphones, versatile conference, meeting and seminar microphone systems and professional wireless microphone solutions. JTS is a professional manufacturer of microphone products. During the hi-tech development process, they also take care of the concept of green earth, putting their full efforts in the promotion of environment management system that meets ISO 14001 international standard and in the matching of the requirements of RoHS, WEEE and EuP. Meanwhile, they fulfil this concept into the design, manufacturing, rejection and recycling of green and leaf free product. JTS not only provide positive contribution to a sustaining development, but also preserve a clean earth for the next generation. Our professional and commercial sound products, wireless microphones and induction loops are carefully chosen for sale on our website by Sound Services – not everything from every manufacturer is there. Based on feedback, customer reviews and our own observations we list items that are popular, reliable and good value for money. If there are products not shown on our website that you feel we may be able to quote for, please just ask!
